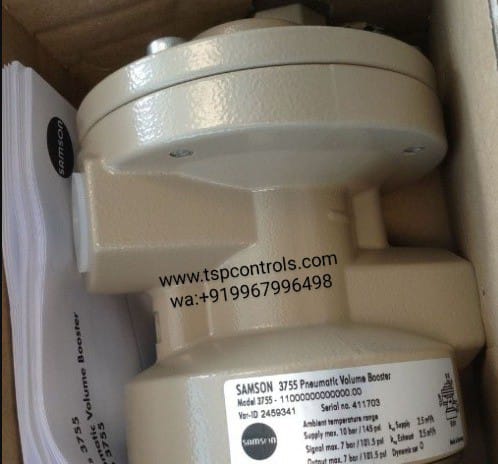

Samson 3755 Volume Booster | Pneumatic Volume Booster

• • Manufacturer : SAMSON
  • Product no : 3730-1
  • Product type : Pneumatic Volume Booster
  • MATERIALS: Cast aluminum
  • TEMPERATURE RANGE: –55 to +60 °C
  • SUPPLY PRESSURE: max 10 bar -145 psi

Samson 3755 Volume Booster is used together with positioners to increase the positioning speed of pneumatic actuators with an effective area ≥ 1000 cm² or a travel volume ≥ 6 l...more The pneumatic volume booster is mounted between the positioner and actuator. It supplies the actuator with an air flow output whose pressure corresponds exactly to the signal pressure, except that it has a much higher volume output.

Samson 3755 Volume Booster Features:

Excellent control accuracy
Fast dynamic response due to low hysteresis
Balanced plug ensures constant reversing pressure
Bypass restriction with linear characteristic
Bypass restriction setting can be lead-sealed
Aluminum or stainless steel body material
Sintered polyethylene filter disk ensures low noise emissions
Low-noise venting or exhaust port connected to a pipe
Standard or low-temperature version
Version with G or NPT thread

Samson 3755 Volume Booster Specification:

Flow coefficient
1. KVS Supply 2.5 m³/h
2. KVS Exhaust 2.5 m³/h
3. KVS Bypass 0.3 m³/h
Closed loop control
Pressure ratio Signal:output = 1:1
Response pressure Standard temperature range: 80 mbar · Low-temperature range: 100 mbar
Pressure
Supply max. 10 bar · max 145 psi
Actuator max. 7 bar · max 101.5 psi
Signal max. 7 bar · max 101.5 psi
Air quality acc. to ISO 8573-1 Max. particle size and density: Class 4 · Oil content: Class 3 · Pressure dew point: Class 3 or at least 10 K
below the lowest ambient temperature to be expected
Connecting thread
Supply (SUP) G ¾ (optionally ¾ NPT)
Actuator/output (OUT) G ¾ (optionally ¾ NPT)
Signal (SIG) G ¼ (optionally ¼ NPT)
Exhaust port (EXH) – G 1 (optionally 1 NPT)

For complete datasheet;TSP Controls – SAMSON 3755 Volume Booster Datasheet
